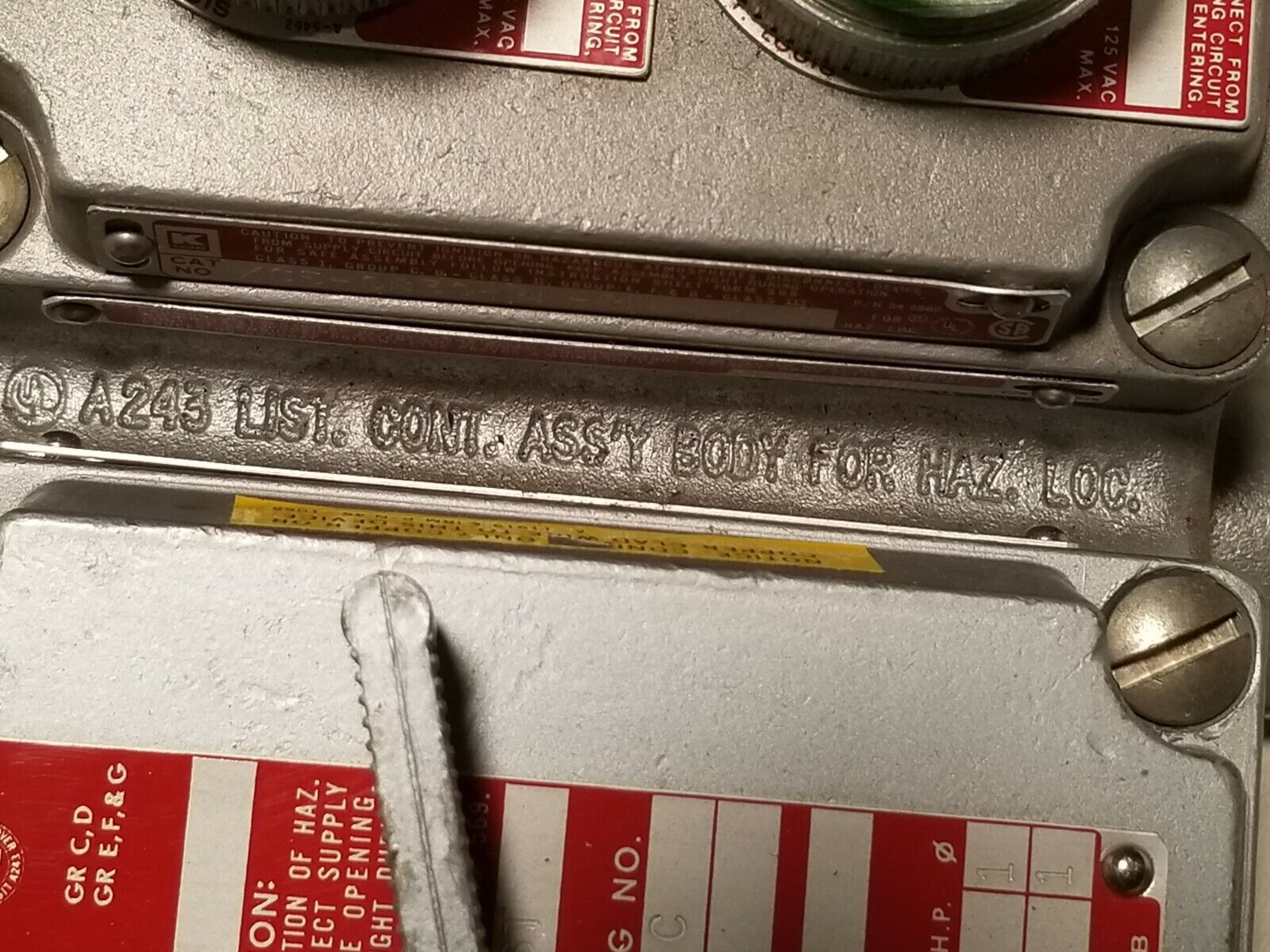

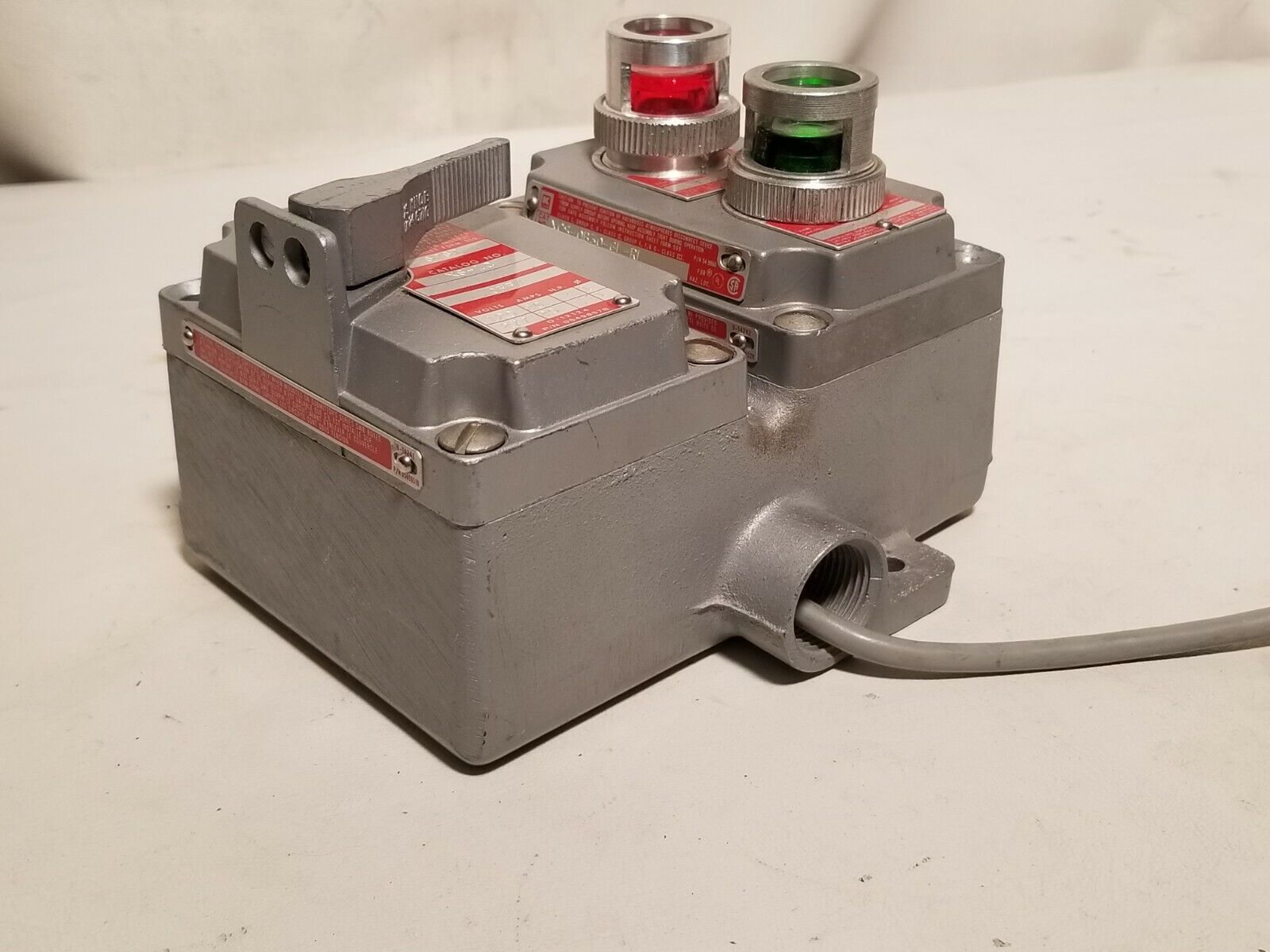

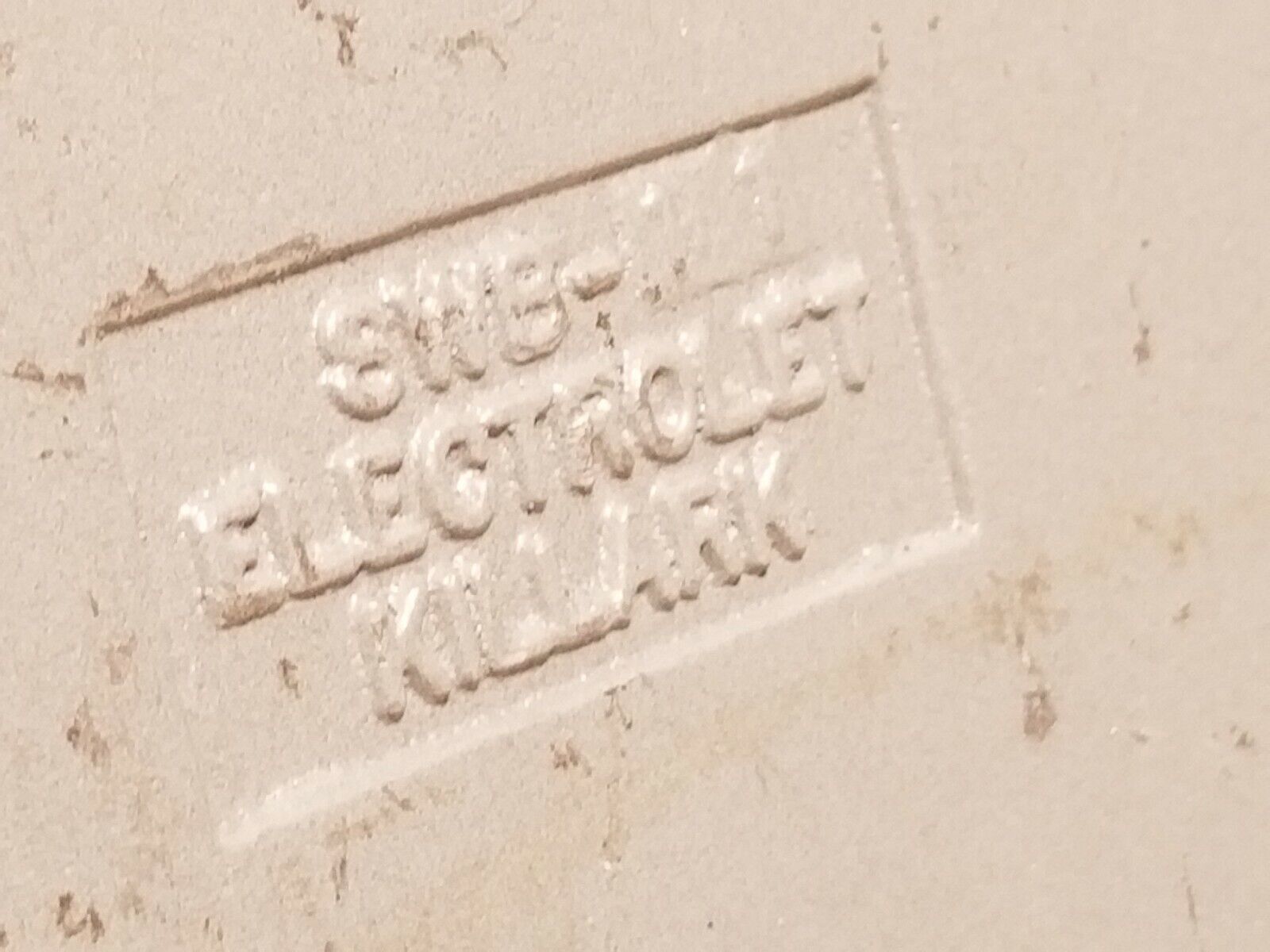

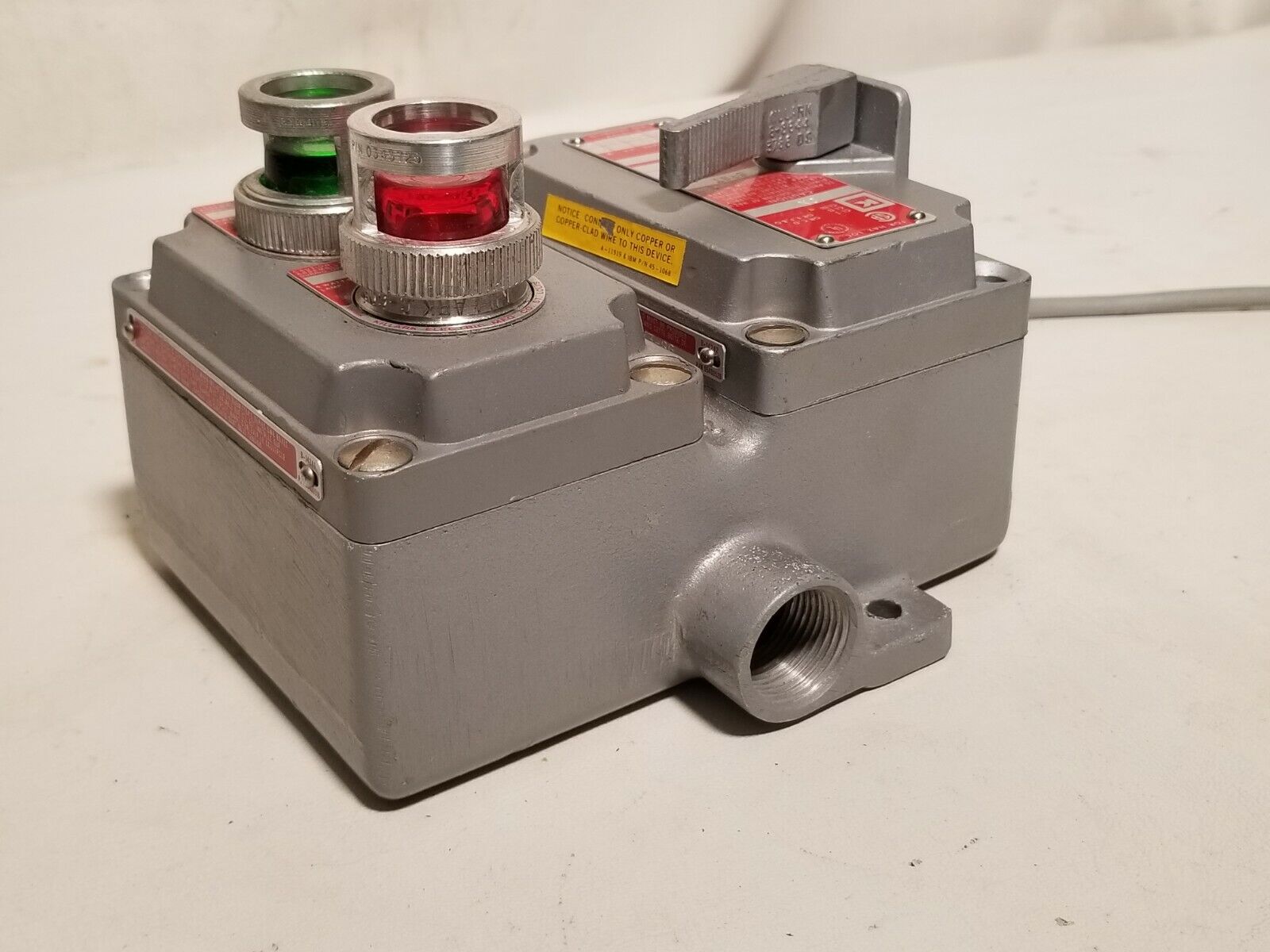

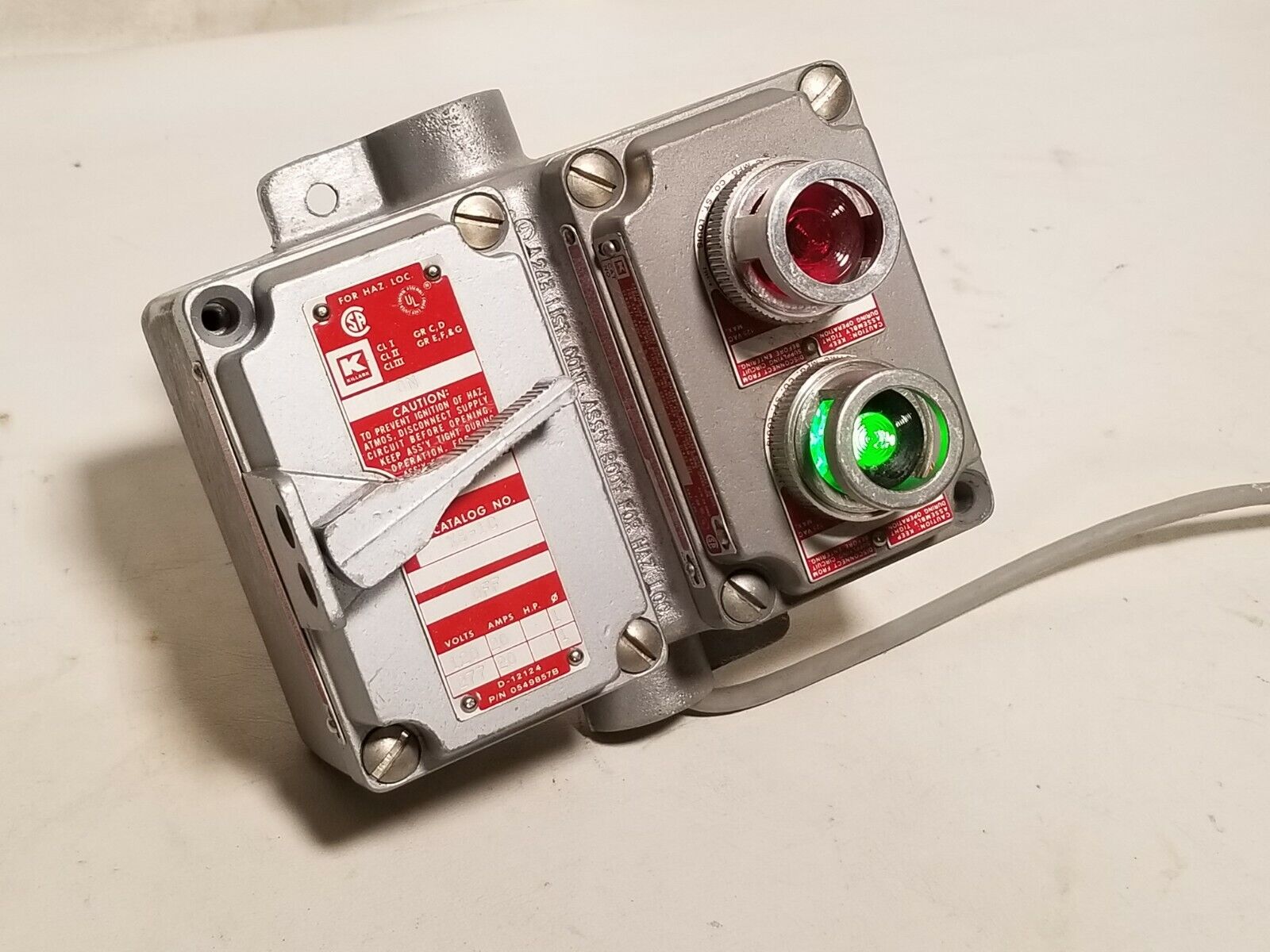

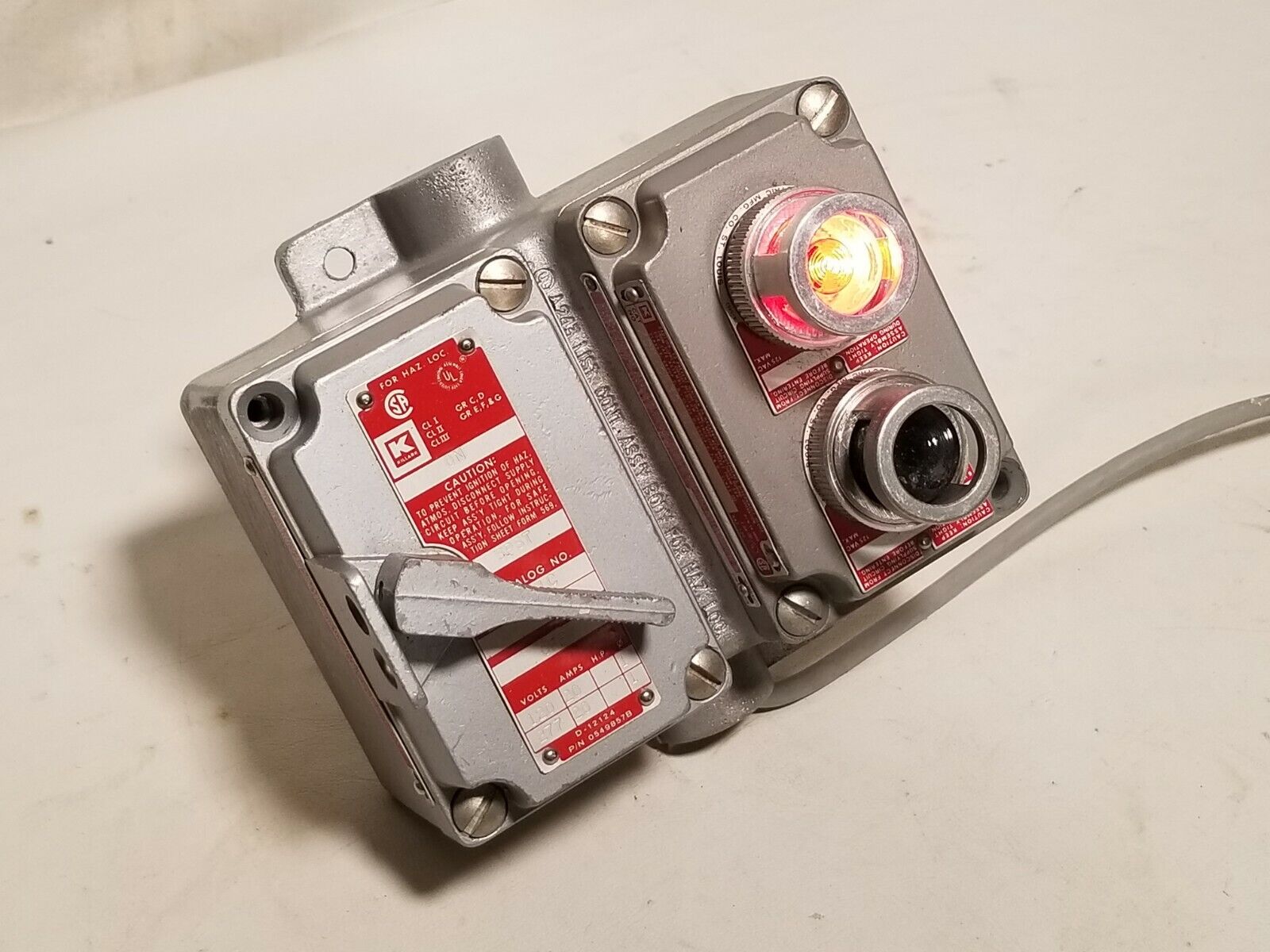

Killark SWB-11 with XCS-0B30 GL-RL, XS-1C switch for hazardous locations, aluminum alloy
SWB Series - Aluminum Feed-Thru Double-Gang Device Body For Use With XCS/XS/XT Cover Assemblies - Hub Size 3/4 Inch
Copper free cast aluminum alloy.
Ground flange joint between bolted cover and box provide required flame path.
Accepts both miniature and standard size push buttons.
Internal ground screw.

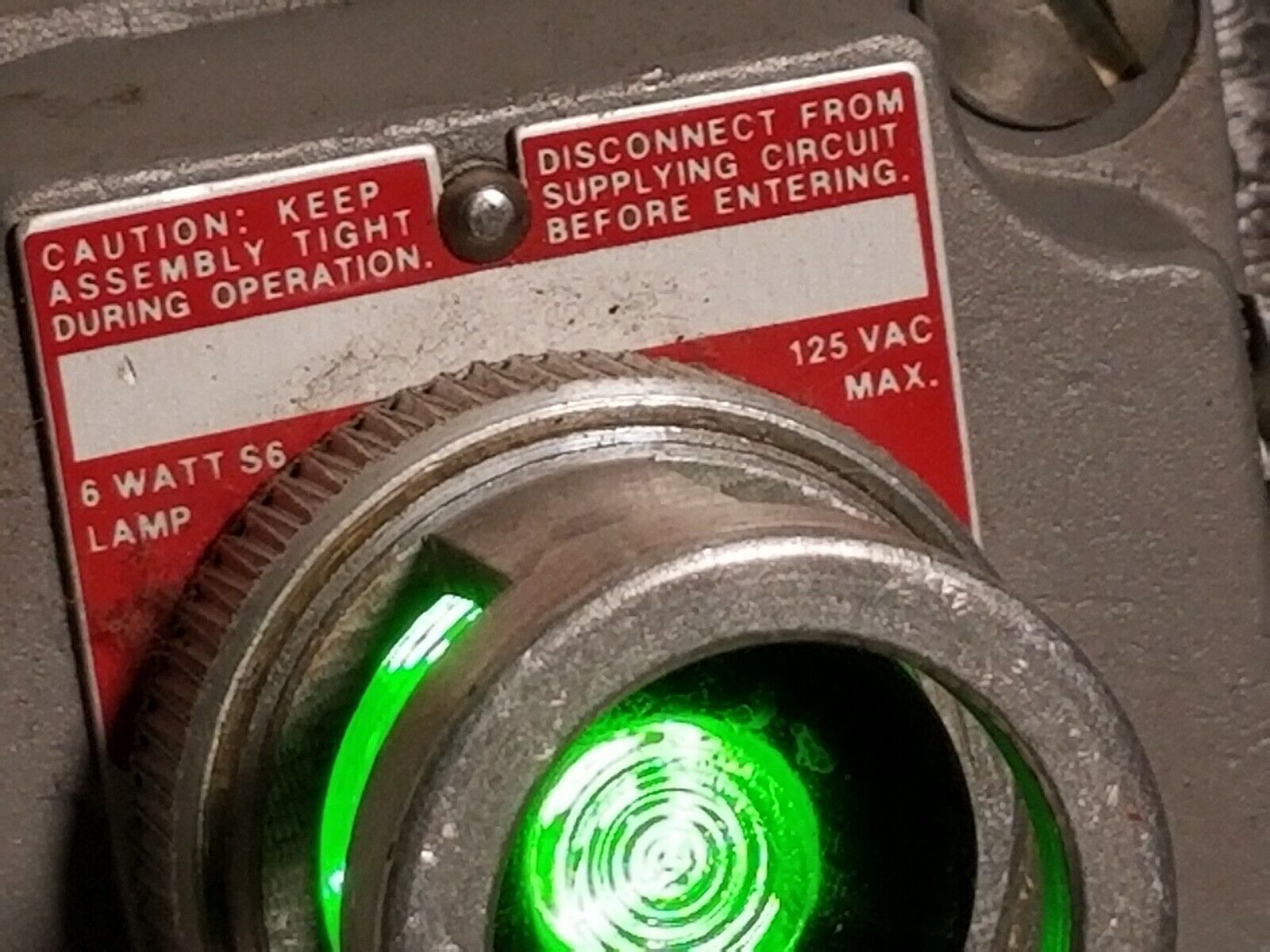

Killark SWB SERIES CONTROL STATION BACK BOXES provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more for use with Killark XCS and XS Cover Assemblies. For use in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use and are Non-Factory Sealed requiring the need for a conduit seal fitting. UL Listed and CSA Certified.

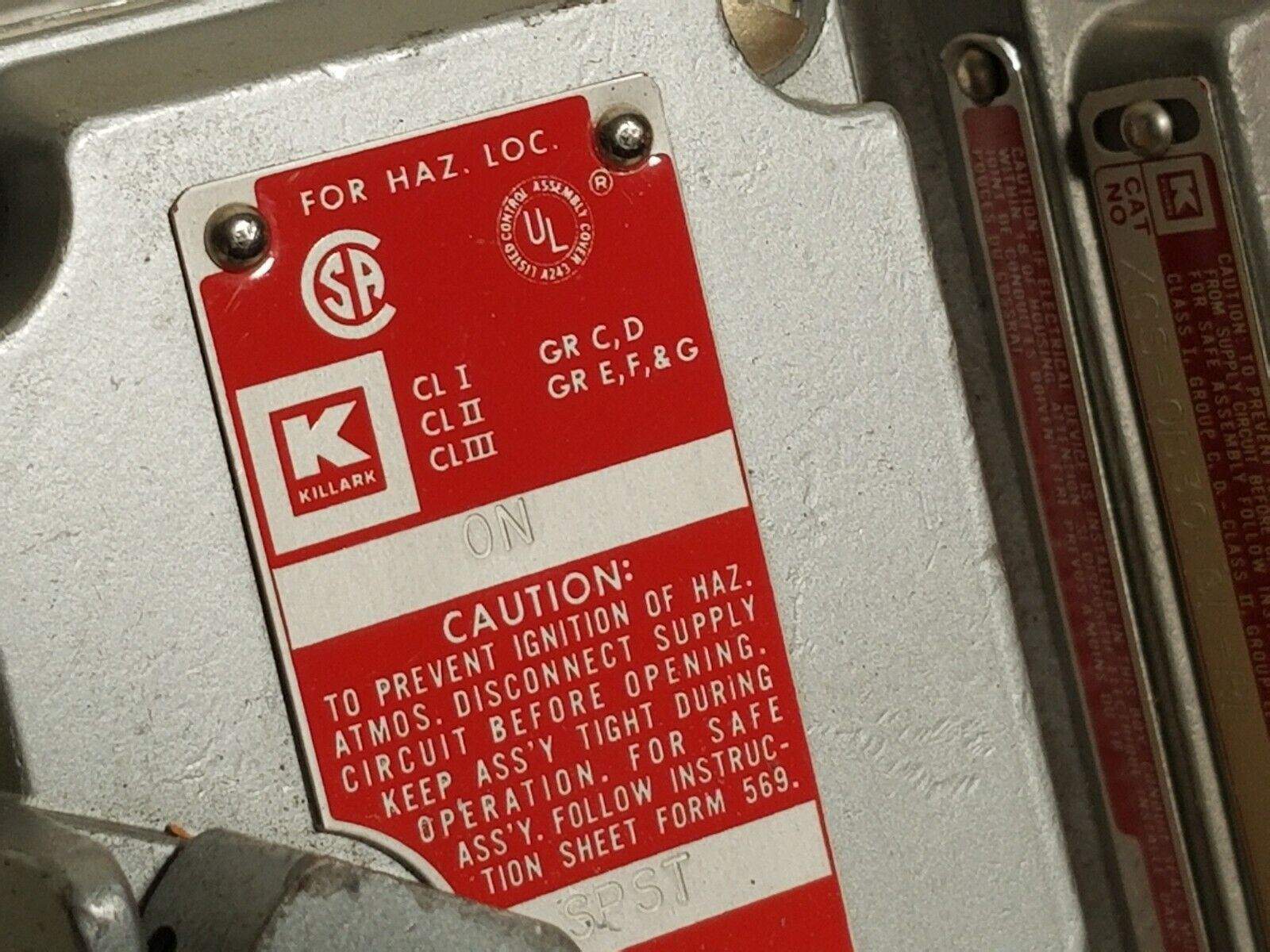

Killark XS-1C
XS Series - Aluminum 1-Pole Tumbler Switch Cover With Device - 20A
Front lever rotary operated switch assemblies.
Standard provisions for padlocking in either “ON” or “OFF” position.
The lever is connected to a threaded stainless steel shaft which passes through the cover.
