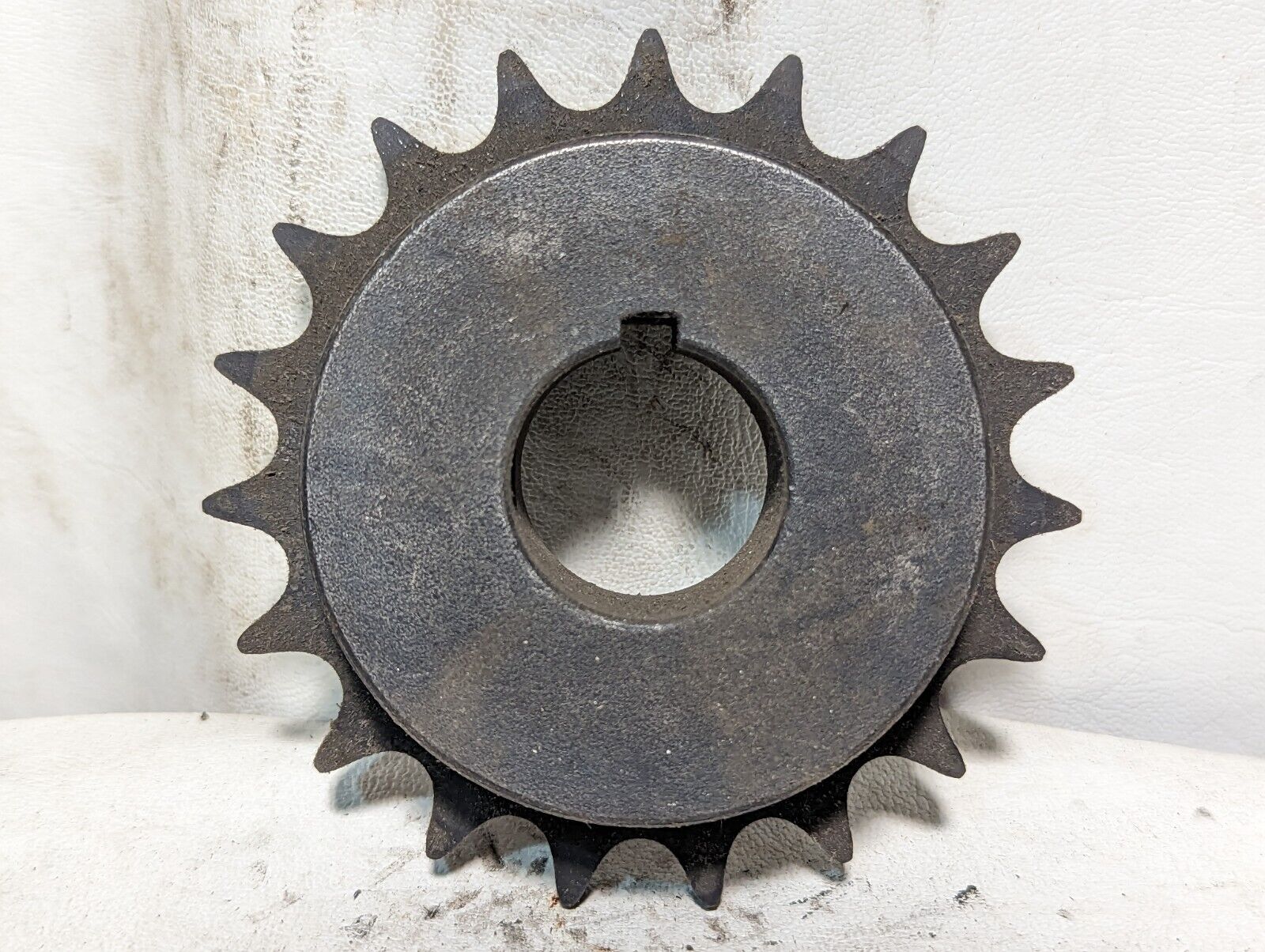

Martin 50BS19HT 1-3/16 bored to size sprocket, 1.1875in bore, 19 teeth, steel
Martin 50BS19HT 1-3/16 bored to size sprocket, 1.1875in bore, 19 teeth, steel
Regular price
$24.99 USD
Regular price
Sale price
$24.99 USD
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Free Shipping to USA on orders under 50 lbs.
Couldn't load pickup availability
Martin 50BS19HT 1-3/16 bored to size sprocket, 1.1875in bore, 19 teeth, steel. New old stock. From the stockroom of a closing industrial facility. No packaging.
Chain Number & Pitch
50 / 5/8 in
Number of Teeth
19
Bore Type
Bored to Size
Bore Diameter
1.1875 in - 1-3/16 in
Number of Strands Across
1
Material
Steel
Hardened Teeth
With Hardened Teeth
Number of Hubs
1
Length Through Bore
1.0000 in - 1 in
Maximum Bore Diameter
2 in
Outside Diameter
4.12 in
Pitch Type
Single
Pitch Diameter
3.7972 in
Caliper Diameter
3.3842 in
Tooth Width
0.3430 in
Hub Diameter
3 in
Hub Outside Diameter
3.0000 in
Hub Projection
0.6563 in
Number of Set Screws
2
Set Screw Size
.313-18 X .313 in
Set Screw Location
2SS, KEYWAY & 90°
Keyway Size
1/4 X 1/8 in
Stocked Finished Bore
1 3/16 in
Storage Dimension Height
1.0625 in
Storage Dimension Length
4.3125 in
Storage Dimension Width
4.3125 in
Weight
1.90 lbs
Manufacturer UPC Number
697950161815
