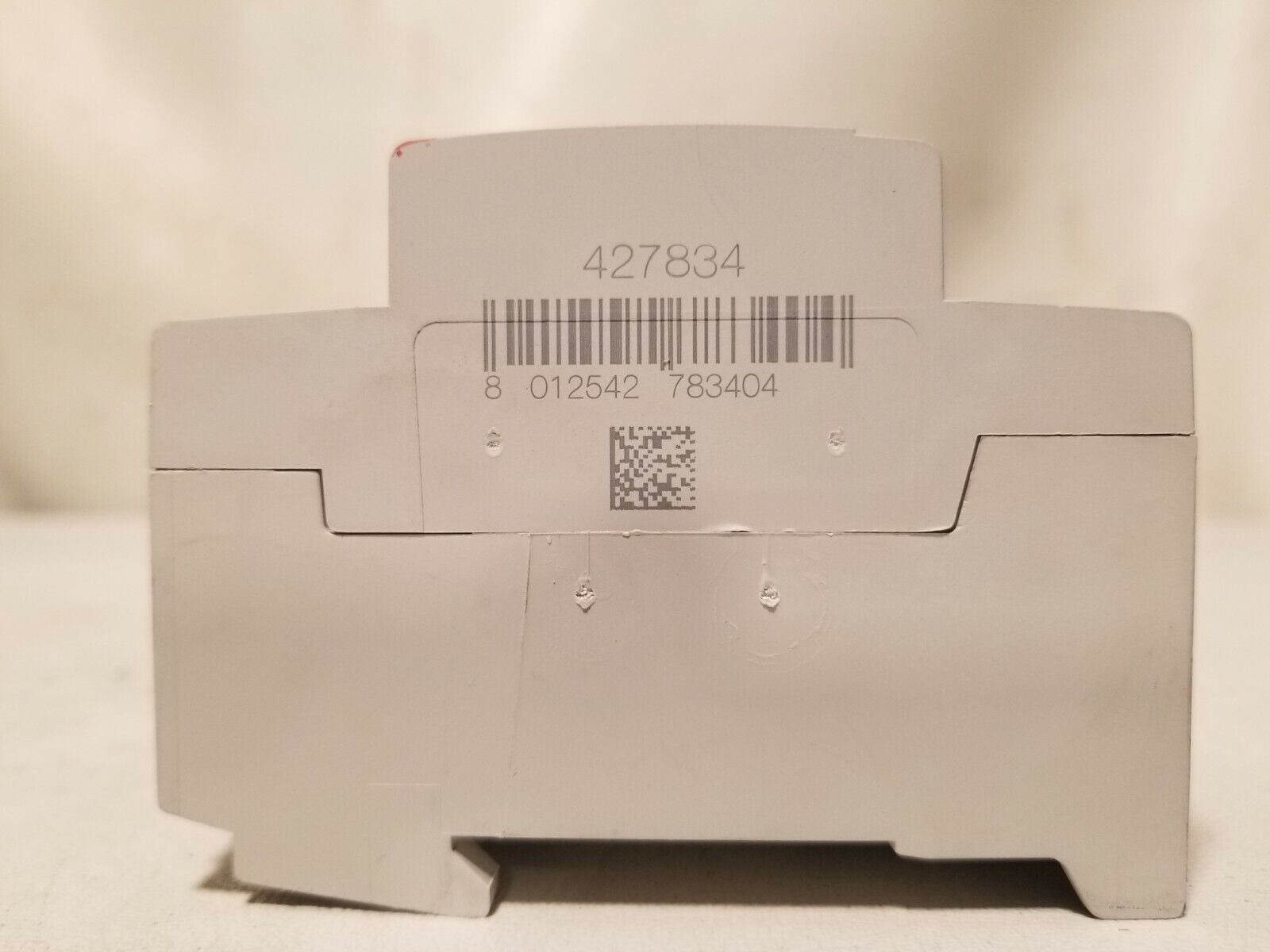

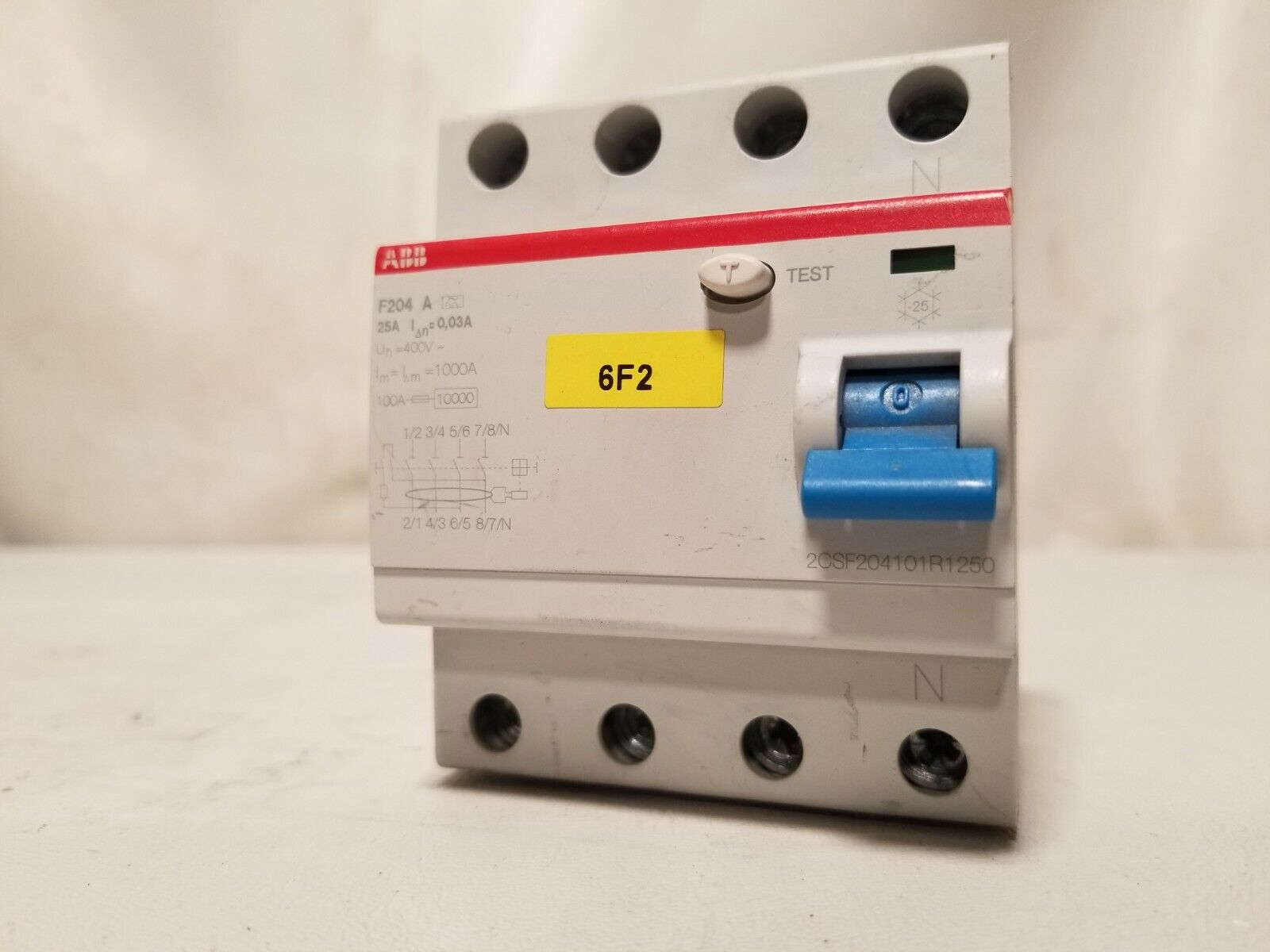

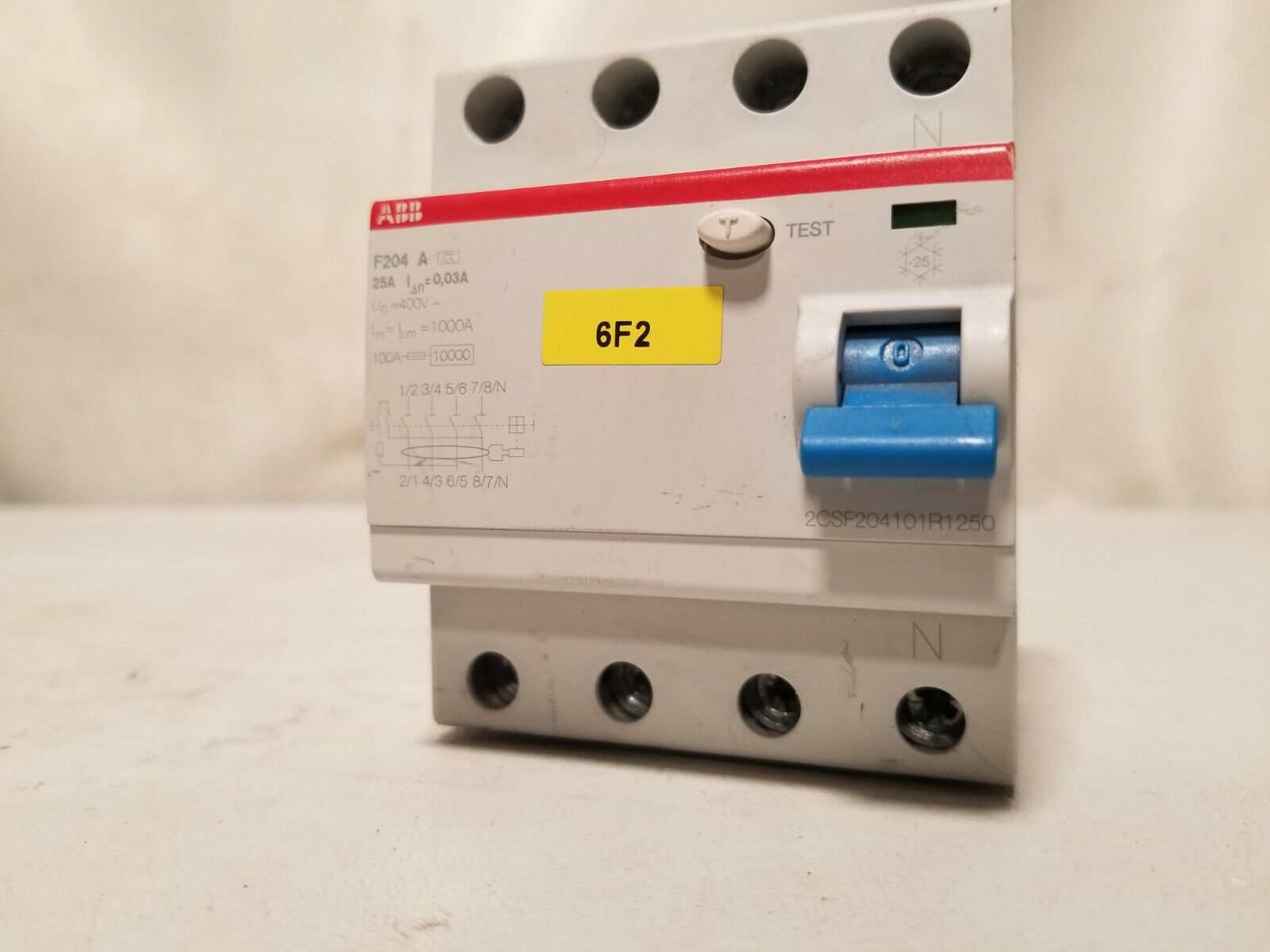

ABB F204 A 25A 2CSF204101R1250 Residual Current Circuit Breaker
ABB F204 A 25A 2CSF204101R1250 Residual Current Circuit Breaker
Regular price
$49.99 USD
Regular price
Sale price
$49.99 USD
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Free Shipping to USA on orders under 50 lbs.
Couldn't load pickup availability
ABB F204 A 25A 2CSF204101R1250 Residual Current Circuit Breaker
Technical
- Standards:
- IEC/EN 61008
UL 1053
- Operating Characteristic:
- Instantaneous
- Type of Residual Current:
- A type
- Rated Residual Current:
- 30 mA
- Rated Current (In):
- 25 A
- Number of Poles:
- 4
- Position of Neutral Terminals:
- Right
- Power Loss:
- at Rated Operating Conditions per Pole 1.3 W
- Rated Voltage (Ur):
- 230/400 V
- Rated Frequency (f):
- 50/60 Hz
- Ambient Air Temperature:
- Operation -25...55 °C
- Connecting Capacity:
- Busbar 10 mm²
Rigid 25 …25 mm²
Flexible 25 …25 mm²
- Degree of Protection:
- IP2X
- Electrical Endurance:
- 10000 cycle
- Mounting Type:
- DIN rail
- Object Classification Code:
- Q
- Pollution Degree:
- 2
- Rated Conditional Short-Circuit Current (Inc):
- 10 kA
- Rated Insulation Voltage (Ui):
- 500 V
- Rated Operational Voltage:
- 230/400 V
- Width in Number of Modular Spacings:
- 4
Environmental
- Ambient Air Temperature:
- Operation -25...55 °C
- RoHS Status:
- Following EU Directive 2011/65/EU
Technical UL/CSA
- Maximum Operating Voltage UL/CSA:
- 480Y / 277 V AC
Dimensions
- Product Net Width:
-
0.070 m
- Product Net Height:
-
0.085 m
- Product Net Depth / Length:
-
0.069 m
- Product Net Weight:
- 0.360 kg
