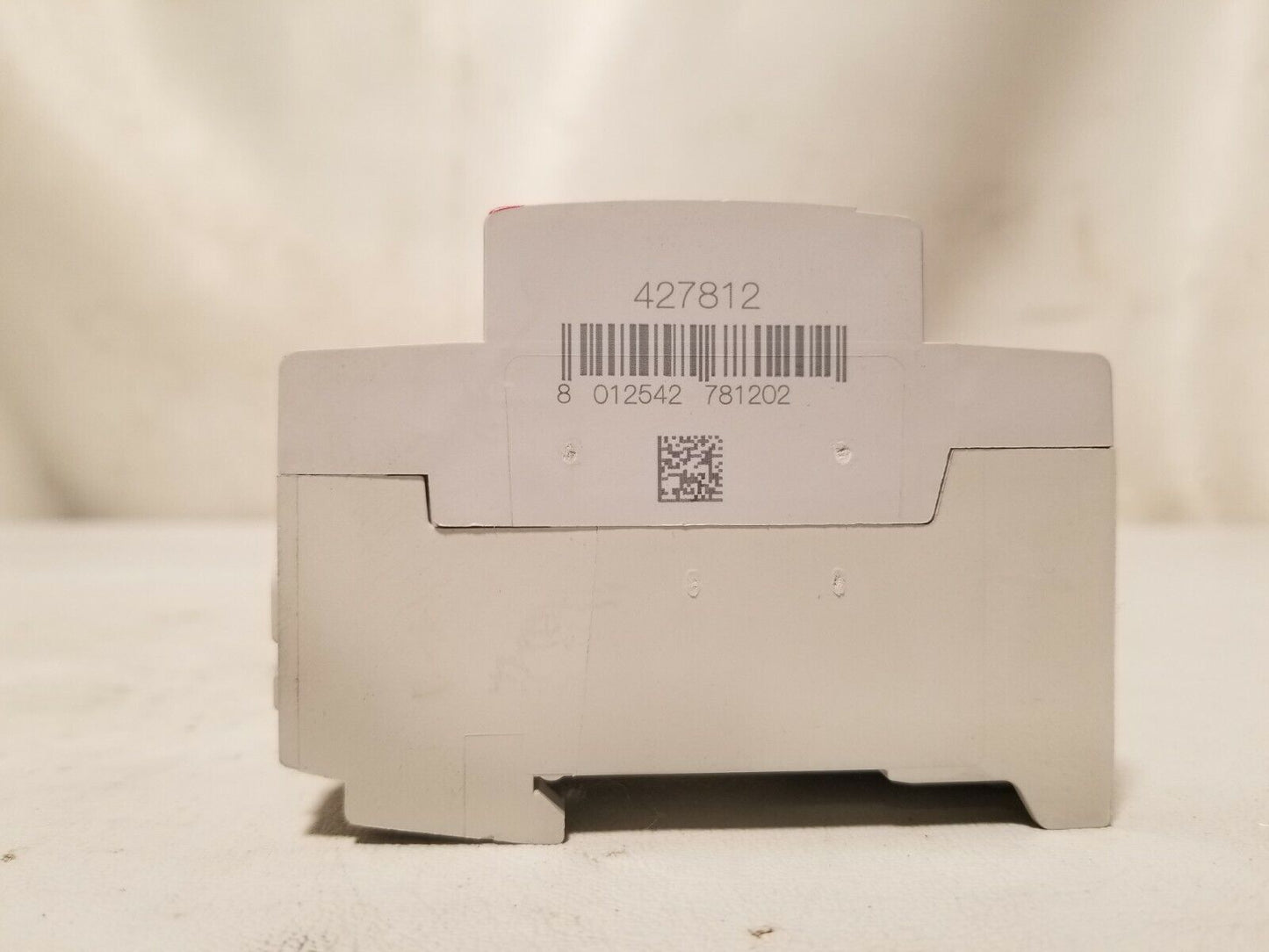

ABB F204 AC 25A 2CSF204001R1250 Residual Current Circuit Breaker
ABB F204 AC 25A 2CSF204001R1250 Residual Current Circuit Breaker
Regular price
$99.99 USD
Regular price
Sale price
$99.99 USD
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Free Shipping to USA on orders under 50 lbs.
Couldn't load pickup availability
ABB F204 A 25A 2CSF204001R1250 Residual Current Circuit Breaker
Dimensions
- Product Net Width:
-
0.070m
- Product Net Height:
-
0.085m
- Product Net Depth:
-
0.069m
- Product Net Weight:
-
0.360kg
- Product Net Width:
-
0.070m
- Product Net Height:
-
0.085m
- Product Net Depth:
-
0.069m
- Product Net Weight:
-
0.360kg
Technical
- Standards:
- EN 61008
UL 1053
- Operating Characteristic:
- Instantaneous
- Type of Residual Current:
- AC type
- Rated Residual Current:
- 30 mA
- Rated Current (In):
- 25 A
- Number of Poles:
- 4
- Position of Neutral Terminals:
- Right
- Power Loss:
- at Rated Operating Conditions per Pole 1.3 W
- Rated Voltage (Ur):
- 230/400 V
- Standards:
- EN 61008
UL 1053
- Operating Characteristic:
- Instantaneous
- Type of Residual Current:
- AC type
- Rated Residual Current:
- 30 mA
- Rated Current (In):
- 25 A
- Number of Poles:
- 4
- Position of Neutral Terminals:
- Right
- Power Loss:
- at Rated Operating Conditions per Pole 1.3 W
- Rated Voltage (Ur):
- 230/400 V
Environmental
- RoHS Status:
- Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2007 Q3
- RoHS Status:
- Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2007 Q3
