Tsubaki 40B12F-1 HT, 1L112 sprocket, 40, For 1/2 in Chain Pitch, 1 in Bore Dia
Tsubaki 40B12F-1 HT, 1L112 sprocket, 40, For 1/2 in Chain Pitch, 1 in Bore Dia
Regular price
$19.99 USD
Regular price
Sale price
$19.99 USD
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Free Shipping to USA on orders under 50 lbs.
Couldn't load pickup availability

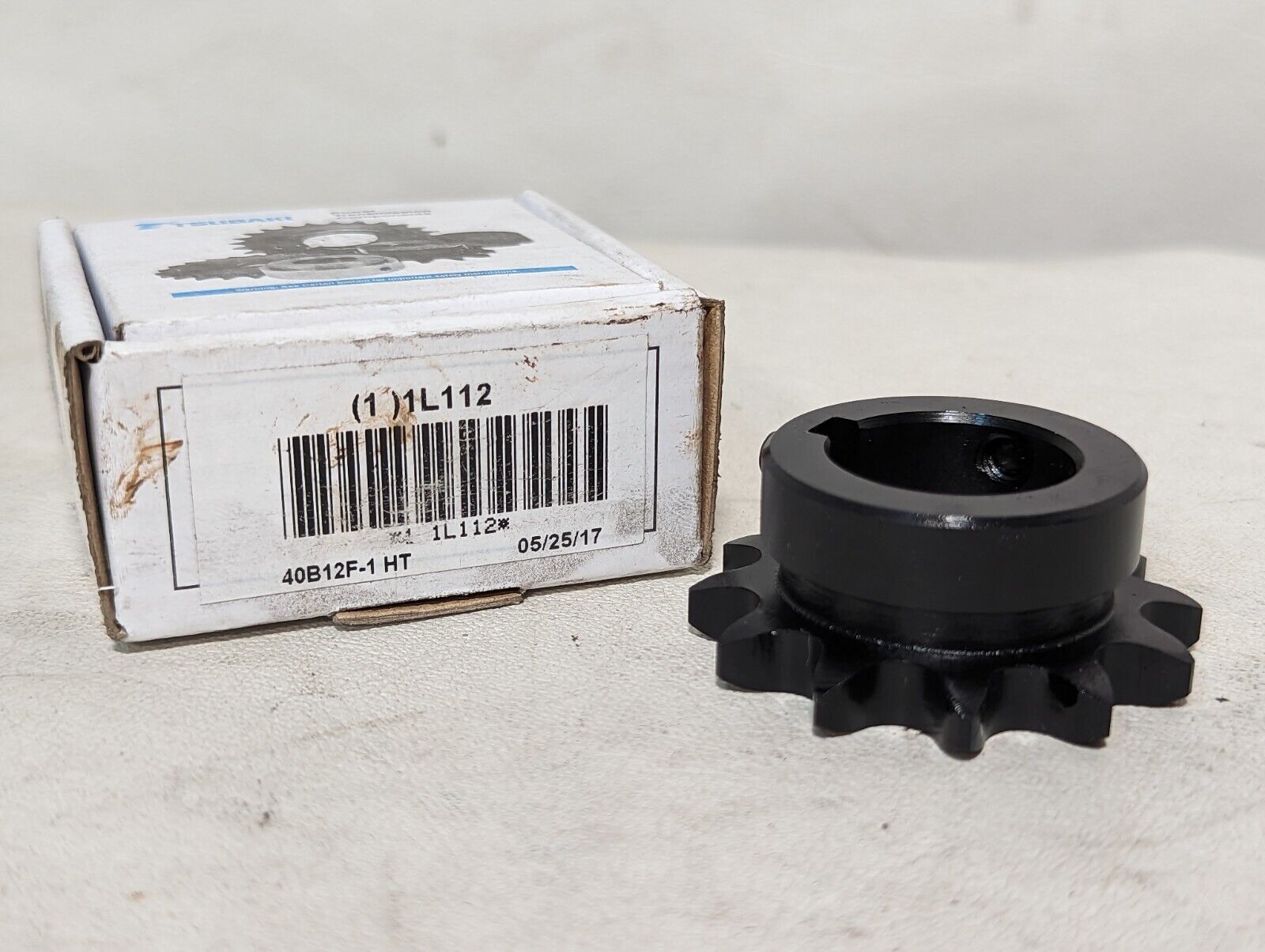

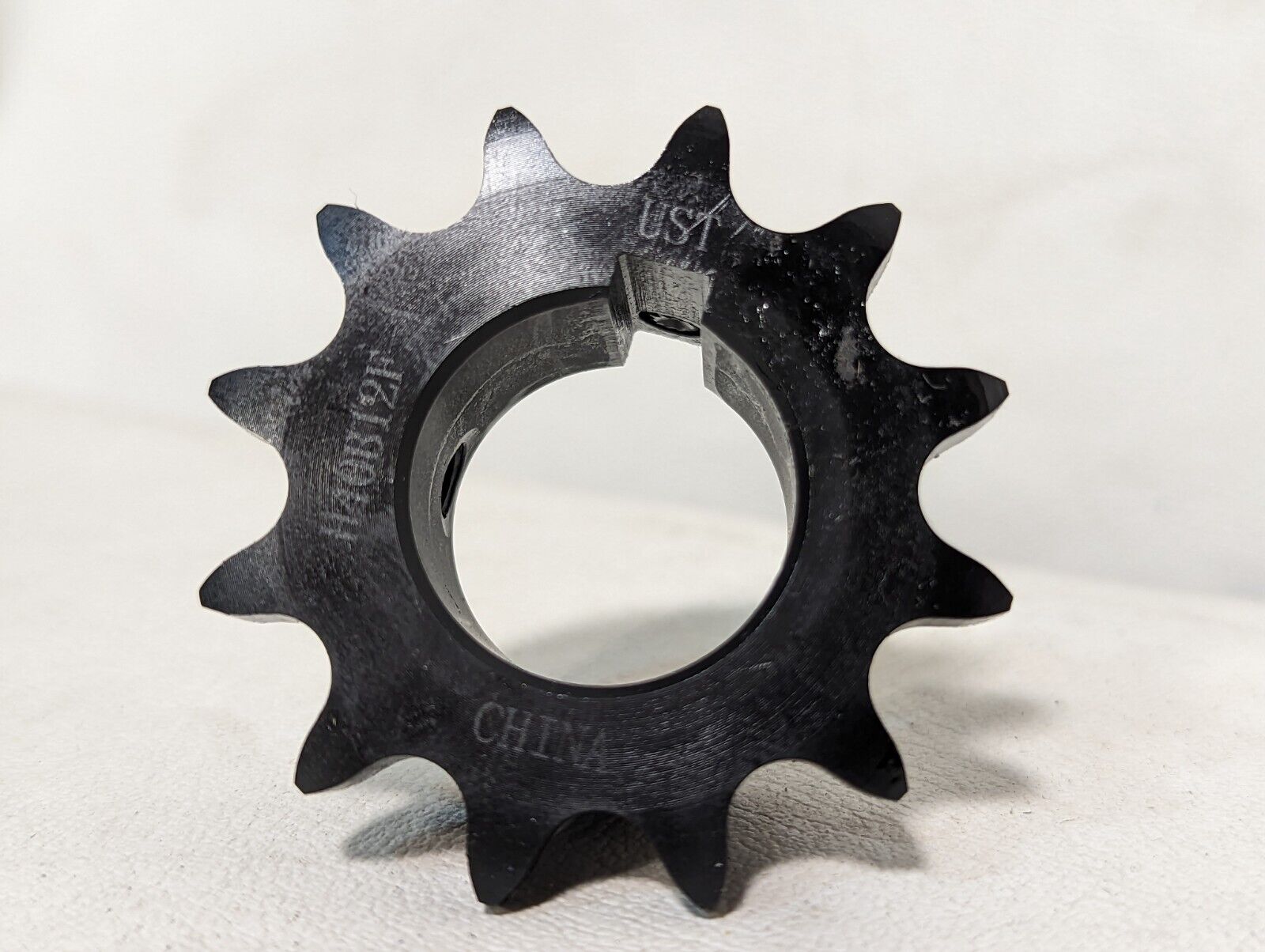

Tsubaki 40B12F-1 HT, 1L112 sprocket, 40, For 1/2 in Chain Pitch, 1 in Bore Diameter, 12 teeth, steel. New old stock. From the stockroom of a closing distribution facility.
For Chain Number
40
For Chain Pitch
1/2 in
Bore Diameter
1 in
Number of Teeth
12
Pitch Diameter
1.932 in
Outside Diameter
2 in
Material
Steel
Brand
TSUBAKI
Manufacturer Part Number
40B12F-1
Finish
Black Oxide
Hub Type
One Side
Keyway
Yes
Keyway Width
1/4 in
Keyway Depth
1/8 in
Length Through Bore
7/8 in
Set Screw Location
90 Degrees from Keyway; Directly Over Keyway
Maximum Bore Diameter
1 in
For Number of Strands
Single
Teeth Heat Treatment
Hardened Teeth
Bore Type
Fixed
For Pitch Type
Single Pitch
Hub Diameter
1-9/16 in
Hub Projection
1 in
Includes
Set Screws
Material Grade
1045
Number of Set Screws
2
Resistance Properties
Corrosion Resistant
Set Screw Size
5/16 in
Standards
ANSI
Tooth Width
0.284 in
UNSPSC
31171901
Country of Origin
China
