Yamato ADP-31 PID-controlled vacuum drying oven, 1.0 cu ft, 120 VAC

Yamato ADP-31 PID-controlled vacuum drying oven, 1.0 cu ft, 120 VAC

$449.99 USD
$449.99 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Free Shipping to USA on orders under 50 lbs.

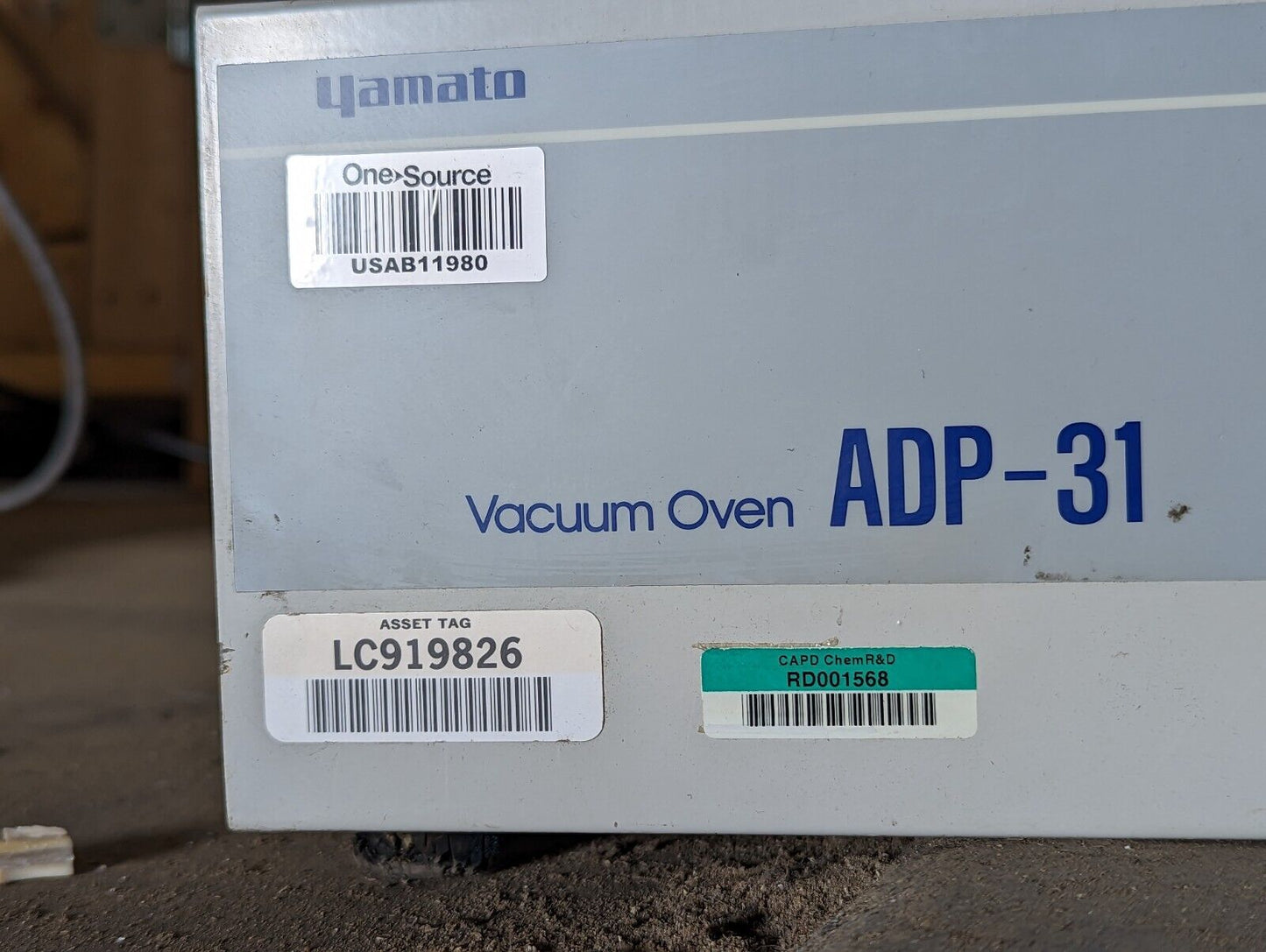

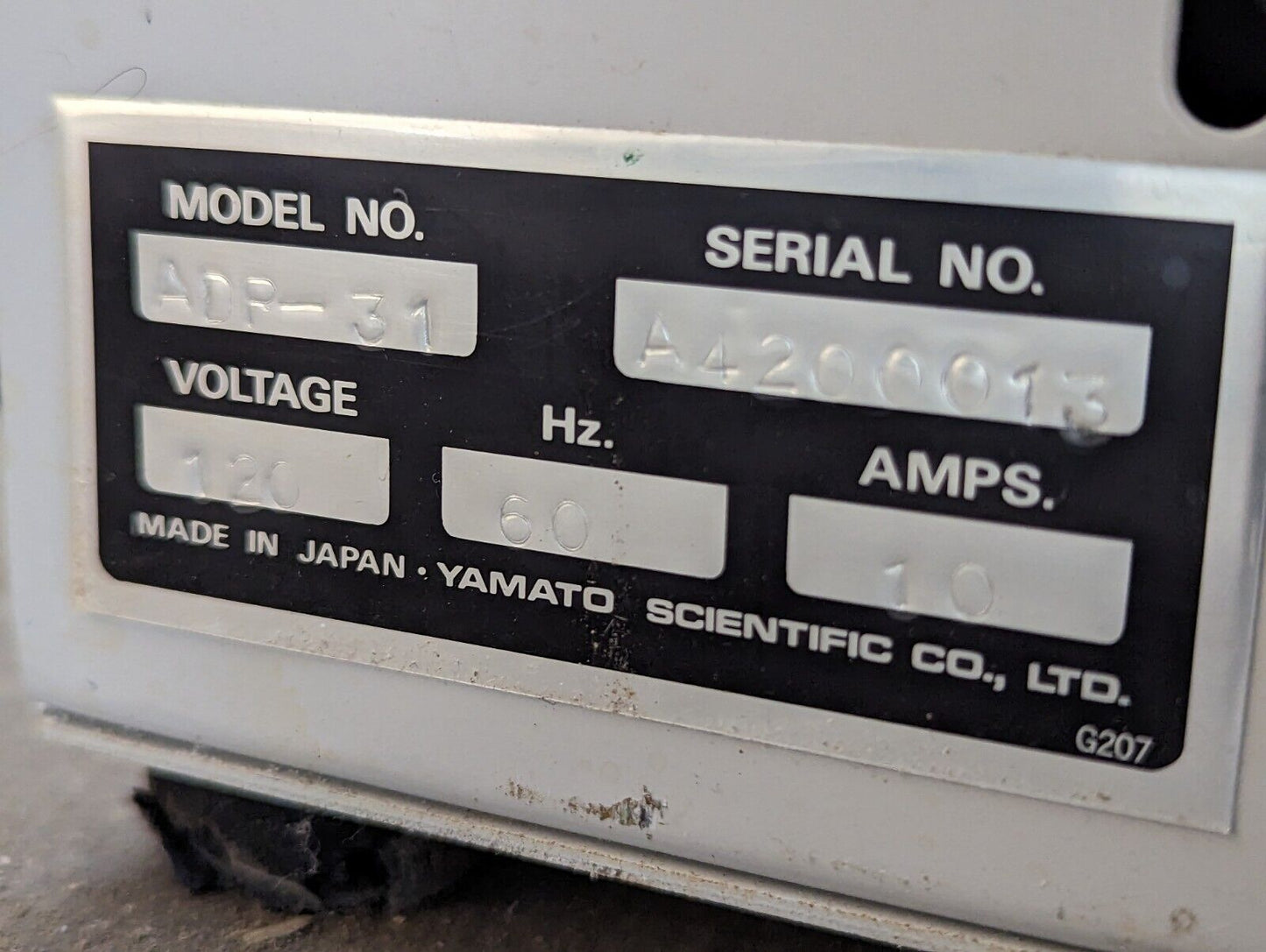

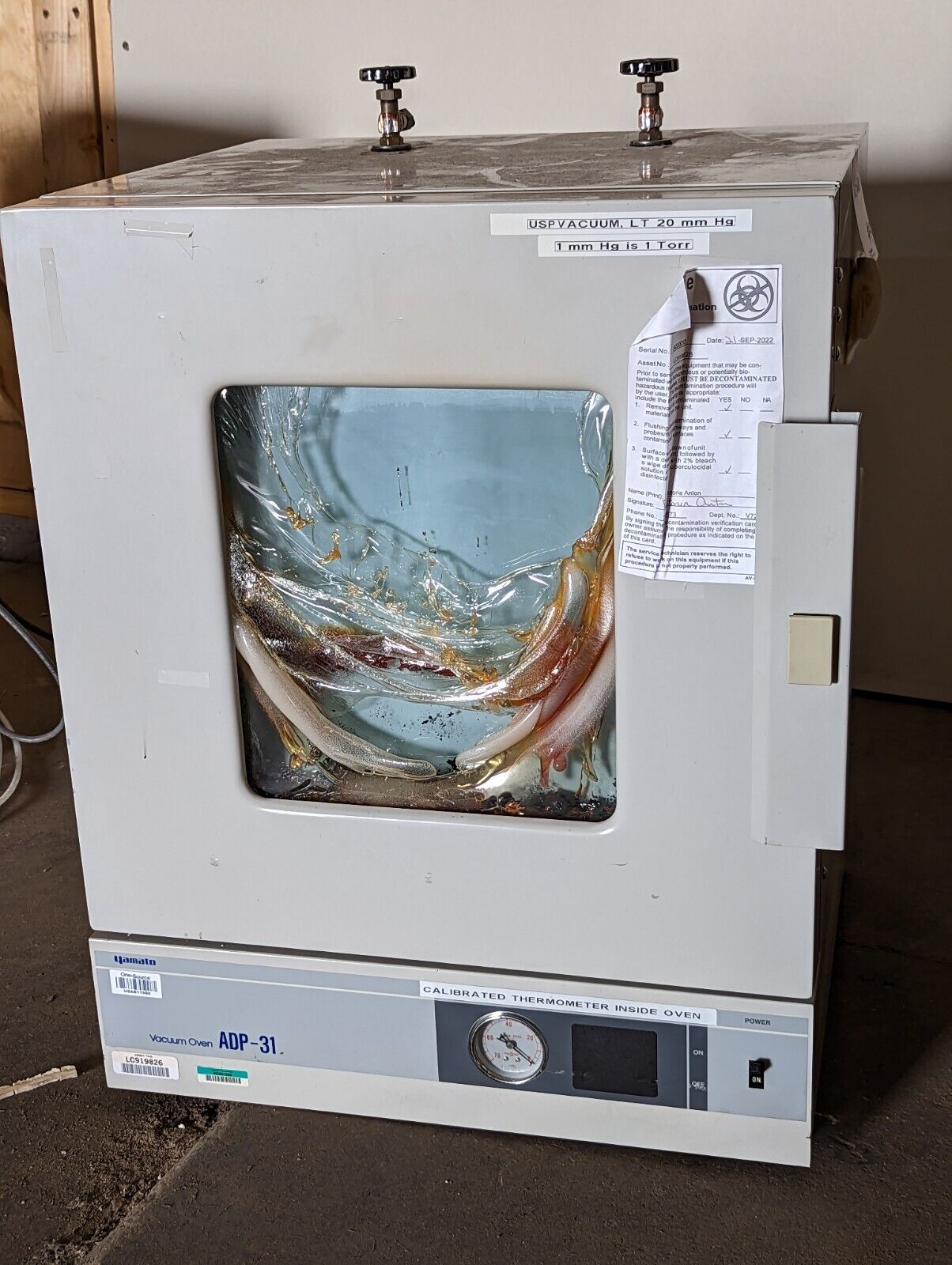

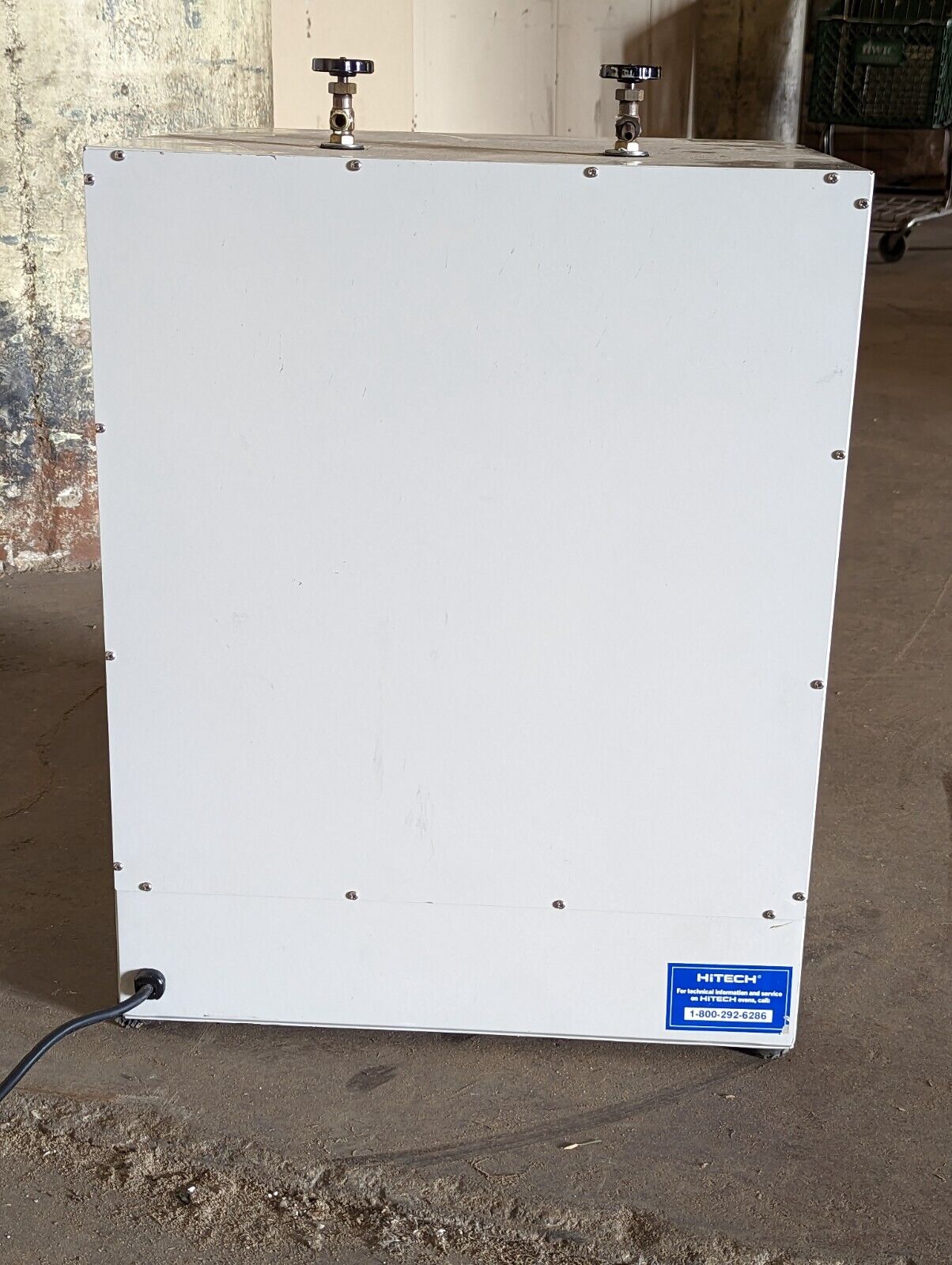

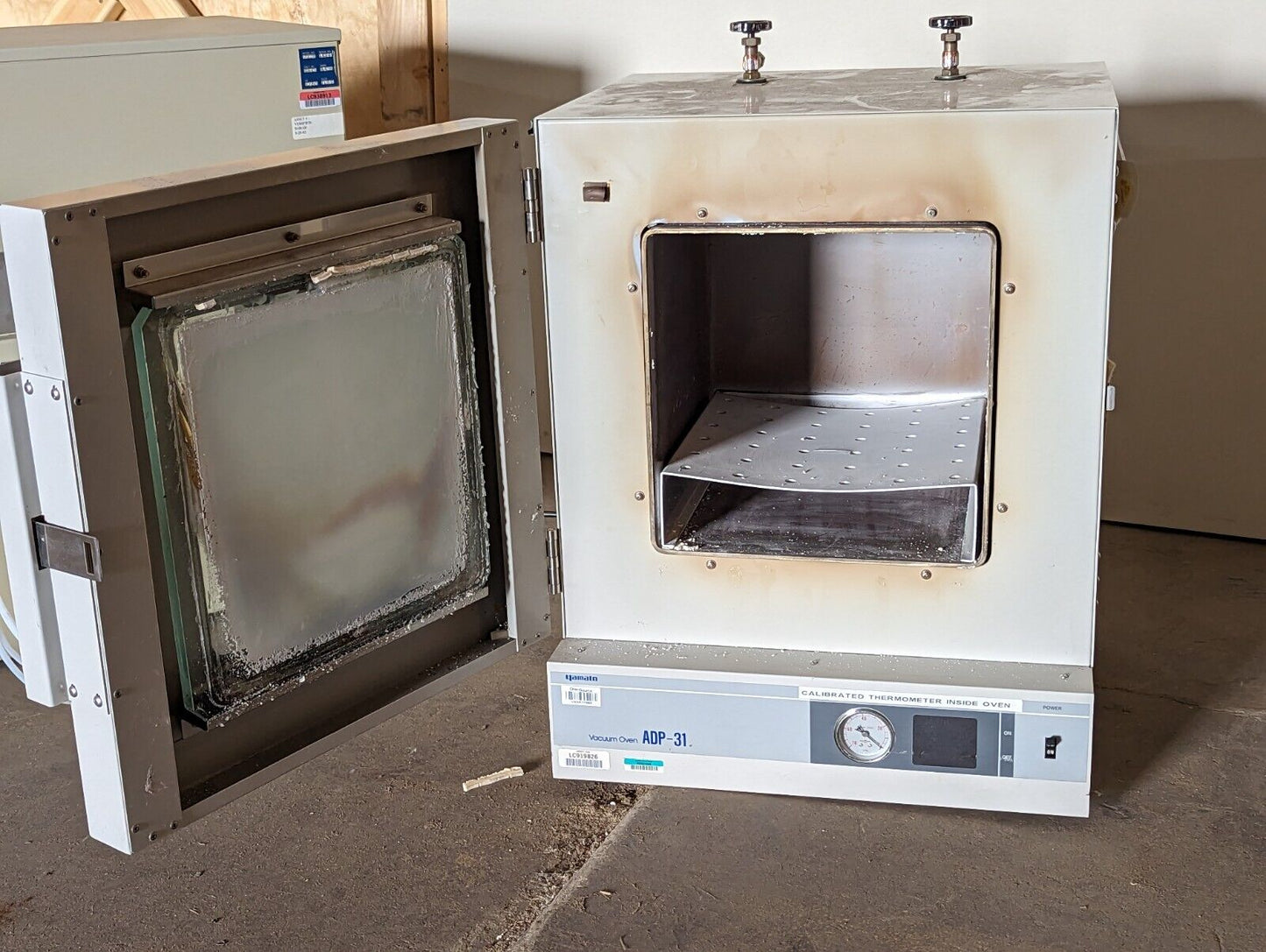

Yamato ADP-31 PID-controlled vacuum drying oven, 1.0 cu ft, 120 VAC. Catastrophic failure as is visible. Does not power on.

Specifications & Description

  • Capacity (cu ft)1
  • Capacity (Liters)28.31
  • Min Temperature (° F)104
  • Max Temperature (° F)464
  • Min Temperature (° C)40
  • Max Temperature (° C)240
  • Temperature Uniformity±0.8 at 150⁰C
  • Temperature Control Accuracy±1.5⁰C (at 150⁰C)
  • Resolution0.1C
  • Vacuum Range101 to 0.1 kPa (at absolute pressure), 760 to 1 mm Hg
  • Chamber Width (in)11 3/4
  • Chamber Height (in)11 3/4
  • Chamber Depth (in)11 3/4
  • Chamber Width (cm)29.845
  • Chamber Height (cm)29.845
  • Chamber Depth (cm)29.845
  • Vacuum DisplayBourdon tube type, 101 to 0kPa (Gauge pressure)
  • Number of Shelves3
  • Number of Shelf Positions3
  • Control TypeMicroprocessor
  • Display4-digit LED
  • Power (VAC)115
  • Power (Hz)50/60
  • ConstructionStainless steel interior
  • DescriptionPID-controlled vacuum drying oven, 1.0 cu ft, 120 VAC

INCLUDES

stainless steel shelves (two with model 33950-00; three with model 33950-10) and a 5½-ft cord with three-prong plug for 120 VAC operation.

KEY FEATURES

  • Reversible door opens from the left or the right
  • Interior constructed of type 304, stainless steel with cold rolled steel exterior and melamine resin finish
  • Rock wool heating insulation
  • Decompressed chamber direct heating method
  • Heater Mica heater, 0.68kW (Model 33950-10 features a Mica heater, 1.05kW)
  • Vacuum gauge Bourdon tube type, 101 to 0kPa (Gauge pressure)
  • Tempered glass observation window (12 mm thickness) and polycarbonate resin plate
  • PlD temperature control by microprocessor
  • Digital temperature setting method with up/down key
  • Electric leakage breaker safety countermeasures
  • Temperature control accuracy ±1.5degC (at 150degC)
  • Time to maximum temperature approx. 70 minutes (model 33950-10 approximately 100 min.)

MORE ABOUT THIS ITEM

These microprocessor-based ovens are accurate and reliable. Large, flat heater embedded behind the chamber wall provides excellent temperature uniformity and quick heating times. A self-diagnostic function visually alerts you and turns off the circuit heater if the temperature sensor, triac, or heater malfunctions.
Ovens are well built and virtually maintenance-free. Silicone door gasket and positive door latch ensure a tight seal. Vacuum and purge valves are located on top of oven for easy access; connections accept 3/8" ID tubing.
